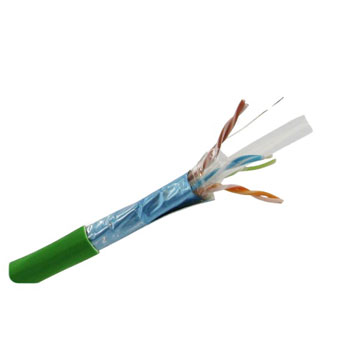

CAT 6 F/UTP cables
HS code:854449
Test Standard :ISO/IEC11801,TIA-568-C.2 ,YD/T1019-2001
Package :Wooden drum & Carton with customized LOGO
CAT6 F/UTP cable with PE
| Conductor | solid-bare copper | Insulation colors | blue,white/blue | Rip cord | yes |
| Conductor Dia. | 0.57mm±0.005 | orange,white/orange | Jacket | PE | |
| Insulation | HDPE | green,white/green | Jacket Color | Multiple | |
| Insulation Dia. | 1.09mm±0.03 | brown,white/brown | Jacket Dia. | 7.4±0.5mm | |
| Drain wire | yes | Shielded layer 1 | AL foil tape | Average Thickness | 0.6±0.05mm |
| Braiding | 0.1/16*6 | Shielded layer 2 | PET film | – | – |
| Separator | yes | Outer Jacket Color | Black | – | – |
CAT6 F/UTP cable with PVC/LSZH
| Conductor | solid-bare copper | Insulation colors | blue,white/blue | Rip cord | yes |
| Conductor Dia. | 0.57mm±0.005 | orange,white/orange | Inner jacket | PVC/LSZH | |
| Insulation | HDPE | green,white/green | Inner jacket Color | Multiple | |
| Insulation Dia. | 1.09mm±0.03 | brown,white/brown | Inner jacket Dia. | 7.4±0.5mm | |
| Drain wire | yes | Shielded layer 1 | AL foil tape | Average Thickness | 0.6±0.05mm |
| Separator | yes | Shielded layer 2 | PET film | – | – |
Electrical Characteristics
| Frequency(MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | RL (≥dB) | PS NEXT (≥dB) |
| 1 | 2.03 | 74.3 | 67.8 | 20 | 64.8 |
| 4 | 3.78 | 65.3 | 55.8 | 23 | 52.8 |
| 8 | 5.32 | 60.8 | 49.7 | 24.5 | 46.7 |
| 10 | 5.95 | 59.3 | 47.8 | 25 | 44.8 |
| 16 | 7.55 | 56.2 | 43.7 | 25 | 40.7 |
| 20 | 8.47 | 54.8 | 41.8 | 25 | 38.8 |
| 25 | 9.51 | 53.3 | 39.8 | 24.3 | 36.8 |
| 31.25 | 10.67 | 51.9 | 37.9 | 23.6 | 34.9 |
| 62.5 | 15.38 | 47.7 | 31.9 | 21.5 | 28.9 |
| 100 | 19.8 | 44.3 | 27.8 | 20.1 | 24.8 |
| 200 | 28.98 | 39.8 | 21.8 | 18 | 18.8 |
| 250 | 32.85 | 38.3 | 19.8 | 17.3 | 16.8 |
| Impedance(1-250MHz) | 100±15 Ohm | DC Conductor Resistance (Ω/100m) max | 9.5 | ||
| Delay Shew ns/100m (1-250MHz) | ≤45 | DC Resistance Unbalance(%) max | 5.0 | ||
| Capacitance(nF/100m) max | 5.6 | NVP | 69% | ||
CAT 6 F / UTP cable, that is, six types of shielded twisted pair cable with aluminum foil total shielding, is an indispensable part of modern network infrastructure. With its efficient and stable performance, it meets the increasing demand of network transmission, especially in the high-speed data transmission and complex network environment, showing excellent adaptability. 1. Structure and characteristics The structural design of the CAT 6 F / UTP cable fully considers the protection of electromagnetic interference (EMI) and radio frequency interference (RFI). The inner twisted pair uses a special twisting mode, which effectively reduces the signal interference and improves the stability of the signal transmission. In the outer layer of the twisted pair line, covered with a layer of aluminum foil total shielding layer, this shielding layer can not only effectively isolate the interference of the external electromagnetic field, but also reduce the electromagnetic interference between the pairs of lines, so as to ensure the clarity and accuracy of signal transmission. High bandwidth: The CAT 6 F / UTP cable supports up to 250 MHz bandwidth, which can meet the needs of various high-speed data transmission. Fast transmission speed: the network built by CAT 6 F / UTP cable can achieve a transmission rate of up to 1 Gbps, which greatly improves the working efficiency of the network. Strong anti-interference ability: the design of aluminum foil total shield layer makes CAT 6 F / UTP cable have a strong anti-interference ability, which can ensure the stable transmission of signal even in the complex electromagnetic environment. CAT 6 F / UTP cables is widely used in a variety of network environments, including data centers, large enterprise networks, commercial buildings, etc. On these occasions, the CAT 6 F / UTP cable
