CCTV coaxial cable

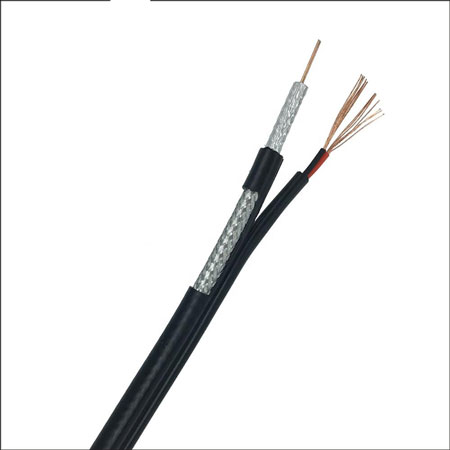

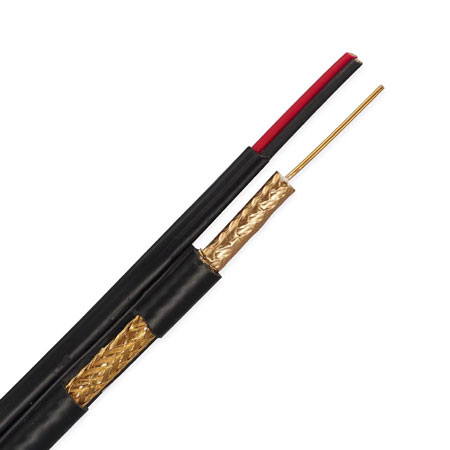

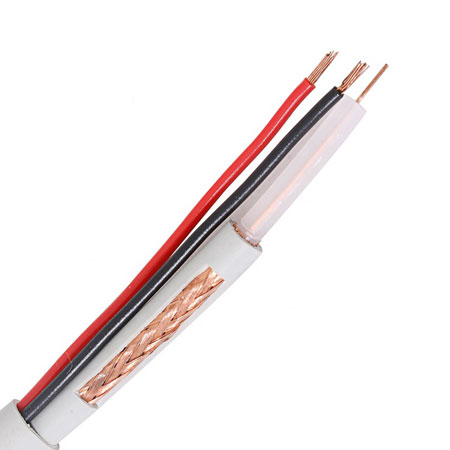

RG series with Power cables:RG59+2C/RG6+2C
CCTV coaxial cable description
HS code:854449
Test Standard :ISO/IEC11801,TIA-568-C.2 ,YD/T1019-2001
Package :Wooden drum & Carton with customized LOGO
Technical Parameters Data
| Item | RG59+Power (75 Ohm) | RG6+Power (75 Ohm) | |
| Conductor | Material | Ccs/Bc | Ccs/Bc |
| Normal.Diameter | 0.80±0.01mm | 1.02±0.02mm | |
| Insulation | Material | Foam PE | Foam PE |
| Normal.Diameter | 3.70±0.10mm | 4.57±0.10mm | |
| Shield | Material | Bc/Cca Braiding | Bc/Cca Braiding |
| Coverage | 95% | 0.95 | |
| Jacket | Material | PVC | PVC |
| Normal.Diameter | 6.0±0.10mm | 6.9±0.10mm | |
| Power Pair | Material | Bc/Cca | Bc/Cca |
| Normal.Diameter | 7*0.37mm | 7*0.37mm | |
The CCTV coaxial cable is a specialized coaxial cable designed for Closed-Circuit Television (CCTV) systems. It consists of four layers: a central copper conductor, an insulating dielectric layer, a braided metal shield (typically copper or alloy), and an outer insulating jacket. This structure ensures stable signal transmission, uniform impedance, and strong resistance to electromagnetic interference.
Thanks to its cost-effectiveness and ease of installation, CCTV coaxial cable is widely used in small to medium-scale surveillance systems. It provides reliable video signal transmission from cameras to monitors or control centers, maintaining high image quality even over long distances. Its strong anti-interference capability makes it suitable for both indoor and outdoor use. As a result, CCTV coaxial cable plays a vital role in the security and monitoring industry
