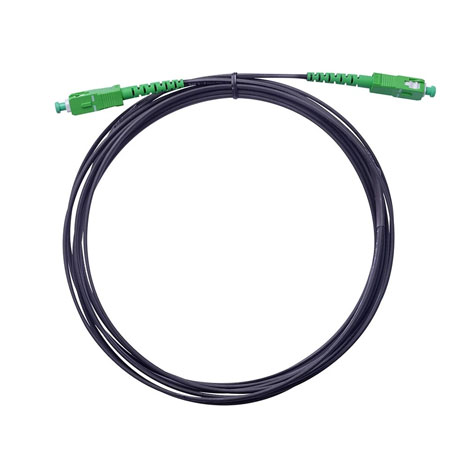

FTTH Drop Cable
Product description
Drop cables are cables that run from the distribution point or cable to the subscriber/user
Fiber patch cord, often called fiber patch cable, fiber jumper, or fiber patch lead, is a length of fiber cable that terminated with fiber optic connectors (LC, SC, MTRJ, ST and etc.) at each end.
The connectors allow fiber optic patch cord to be rapidly connected to an optical switch or other telecommunications/computer device.
Technical Characteristics
| Fiber Count | 1~4 cores |
| Fiber type | G657A1 or A2 |
| Dielectric Strength Member Material | FRP |
| Dielectric Strength Member size | 2 x 0.5mm |
| Messenger Material | Steel wires |
| Messenger size | 1.0mm / 7*0.33mm |
| Nominal Outer Dimensions | 2.0 mm x 5.0 mm (±0.3) |
| Outer Jacket Material | LSZH |
| Tension Strength | 300N/600N |
| (Short-Term / Long-Term) | |
| Crush Resistance | 1000 N/100mm / 2200 N/100mm |
| (Short-Term / Long-Term) | |
| Minimum Bend Radius | 10 x OD / 20 x OD |
| (Static / Dynamic) |
| Connector type | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
| Insertion Loss | ≤ 0.25dB |
| Return Loss (For Singlemode) | UPC ≥ 50dB , APC ≥ 60dB |
| Repeatability | ±0.1dB |
FTTH Drop Cable Features
Designed with special bending-resistant fiber, the cable offers higher bandwidth and improved network transmission performance. Two parallel FRP or metal strength members provide excellent compression resistance and protect the optical fiber. Its simple, lightweight, and robust structure ensures practical usability. The unique groove design allows for easy stripping, fast connections, and simplified installation and maintenance. The cable is jacketed with low-smoke, halogen-free flame-retardant polyethylene or flame-retardant PVC, making it environmentally friendly. Compatible with various field connectors and suitable for on-site termination, the FTTH Drop Cable is a high-performance solution for fiber-to-the-home (FTTH) applications, delivering stable and high-speed connectivity.
