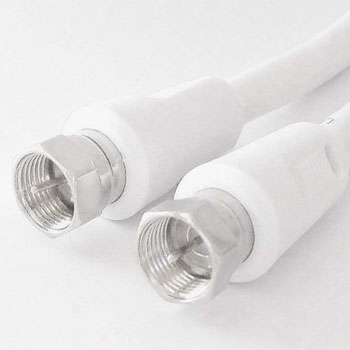

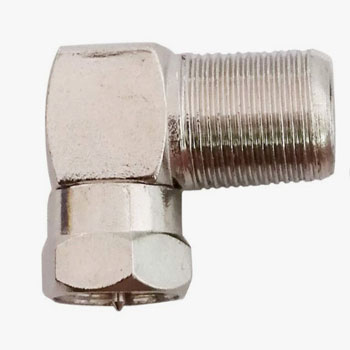

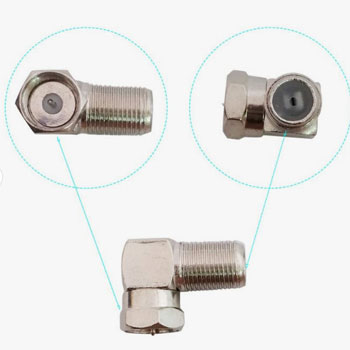

F Connector Plug connector is a high-performance RF coaxial termination designed for 3C-2V coaxial cables, also fully compatible with mainstream RG59 and RG6 antenna coaxial cables. Adopting standard 75Ω impedance design, it provides stable and low-loss signal transmission for radio frequency, video, antenna and satellite signal systems. With precision screw-on locking structure, the connector ensures firm connection, anti-vibration and anti-loosening performance, effectively avoiding signal interruption and interference. It is widely applicable in TV antenna, CATV, CCTV monitoring, satellite receiver and other civil RF signal transmission scenarios.
Parameter | Specification |
Characteristic Impedance | 75 Ω |
Working Frequency Range | DC ~ 1000 MHz (1GHz) |
VSWR (Max) | ≤ 2.0 @ 0~1GHz |
Return Loss | ≥ 10 dB |
Insulation Resistance | ≥ 1000 MΩ |
Withstand Voltage | 1000V AC (50Hz, 1min no breakdown) |
- Wide Cable Compatibility: Perfectly matches 3C-2V coaxial cable, compatible with RG59 and RG6 universal RF antenna cables, one connector for multiple cable specifications
- Stable 75Ω Impedance: Standard industry impedance design, matching most civil RF signal transmission equipment, ensuring no signal distortion
- Low Signal Loss Performance: Optimized structural design, low insertion loss and high return loss, stable signal transmission within working frequency band
- Durable Material Construction: Connector body adopts high-quality brass with nickel-plated surface, central contact with anti-oxidation treatment, wear-resistant and corrosion-resistant for long service life
- Easy Installation: Simple crimp/solder assembly structure, fast wiring without complex tools, efficient on-site installation
- Secure Locking Structure: Standard F-type thread screw-on design, firm connection, anti-vibration and anti-drop, suitable for long-term fixed use
- Universal Application: Compatible with TV, satellite dish, CATV system, CCTV camera and other RF antenna signal devices
Item | Details |
Connector Type | F Type Male Plug (Straight) |
Applicable Cable | 3C-2V, RG59, RG6 RF Coaxial Antenna Cable |
Body Material | High-quality Brass |
Surface Plating | Nickel-plated (Anti-rust & Anti-corrosion) |
Center Contact | Copper Alloy, Anti-oxidation Treatment |
Insulator Material | High-density PE / PTFE |
Pull-out Strength | ≥ 3.0 KG |
Operation Temperature | -40℃ ~ +85℃ |
This F connector supports two mainstream installation modes: crimp type and solder type. Strip the coaxial cable outer sheath, shielding layer and insulating layer in sequence according to the cable specification, insert the cable core into the connector center, fix the shielding layer tightly, then complete crimping or soldering fixation. The whole operation is simple and fast, suitable for mass assembly and on-site quick wiring.
- TV antenna and outdoor antenna signal connection
- CATV cable television system signal transmission
- Satellite receiver, set-top box signal interface connection
- CCTV surveillance camera coaxial signal transmission
- RF wireless communication and civilian radio frequency equipment
